DUMP BODY & HOIST

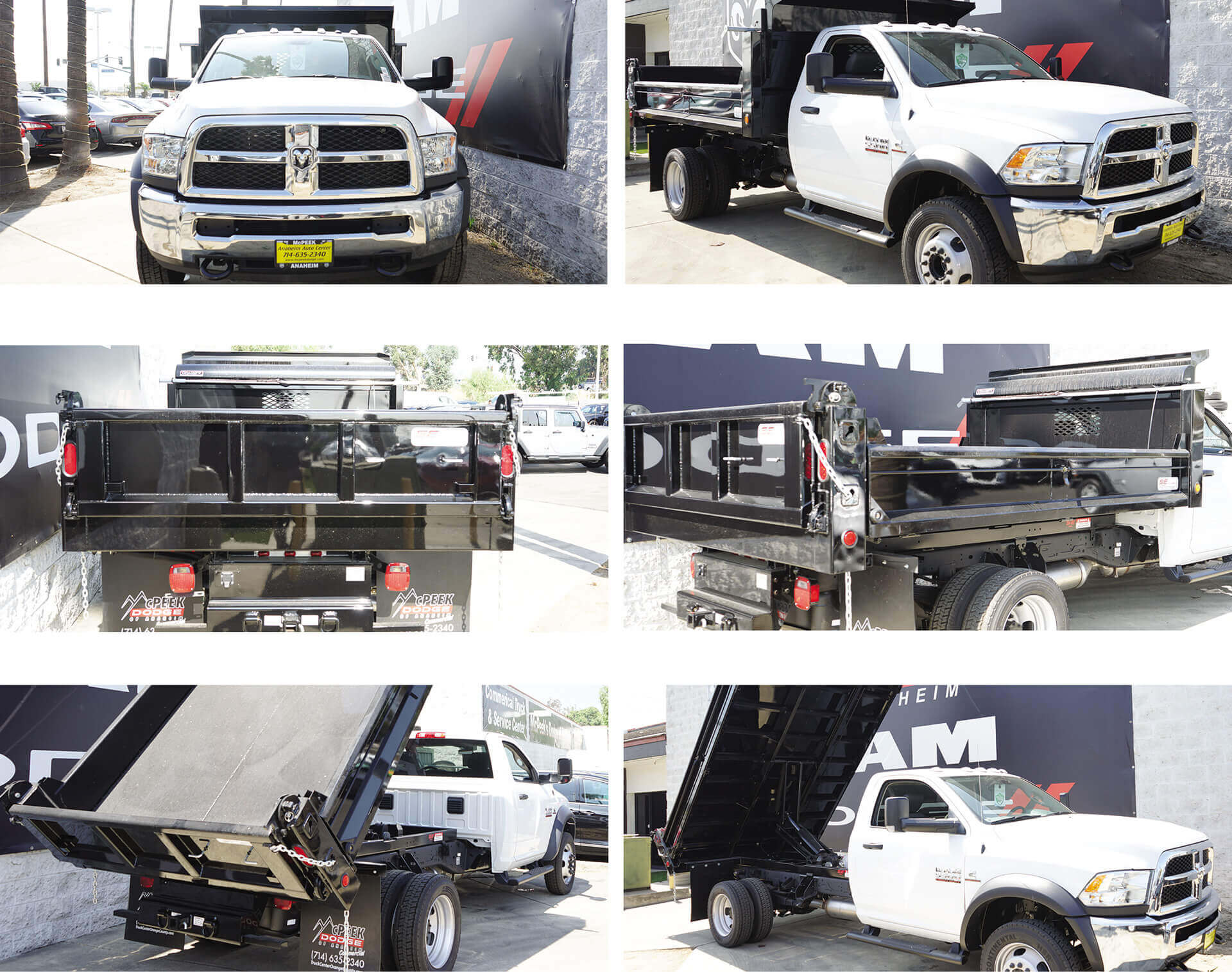

AVAILABLE IN RAM 55003-4 CUBIC YARD DUMP BODY & HOIST

  • DBS 11-6 Dump body with solid sides
  • DBF 11-6 Dump body with fold down sides (option)
  • Recommended: 14,000 – 19,00 GVW Approx. 2,250 lbs.
  • Installed on customer supplied 84″ CA Chassis

BODY SPECIFICATIONS

  • DBS 11-6 Dump body with solid sides
  • 11’6″ Long x 86″ Wide Inside x 14″ Sides x 20″ Tail Gate x 32″ Bulkhead
  • 10 Gauge High-Tensile Throughout
  • 3″ Cross Bars on 15″ Centers x 5″ Channel Longs
  • Punched window
  • 1/4 Size Cab Shield, Deluxe Light Package with Oval Stop & Turn Lights
  • Body Pained Black or White
  • Mud flaps and brackets

HOST

  • Scelzi CS61 5T-11
  • Class 40
  • Power up and power down
  • LED raised up warning light
  • Rated at 12.6 ton capacity
  • 12″ Overhang

AVAILABLE OPTIONS

  • Fold Down Sides (DBF 11-6)
  • 6″ x 3/16″ spreader apron
  • Center ditch gate, sliding type
  • 3/16″ floor in lieu of 10 gauge
  • Semi Automatic pull tarp, black mesh (part # 36126)
  • LED lighting
